自定心補償爪式后拉卡盤 SW
零售價
0.0
Yuan
市場價
0.0
Yuan
瀏覽量:
1000
產品編號
數量
-
+
庫存:
0
產品描述
參數
|

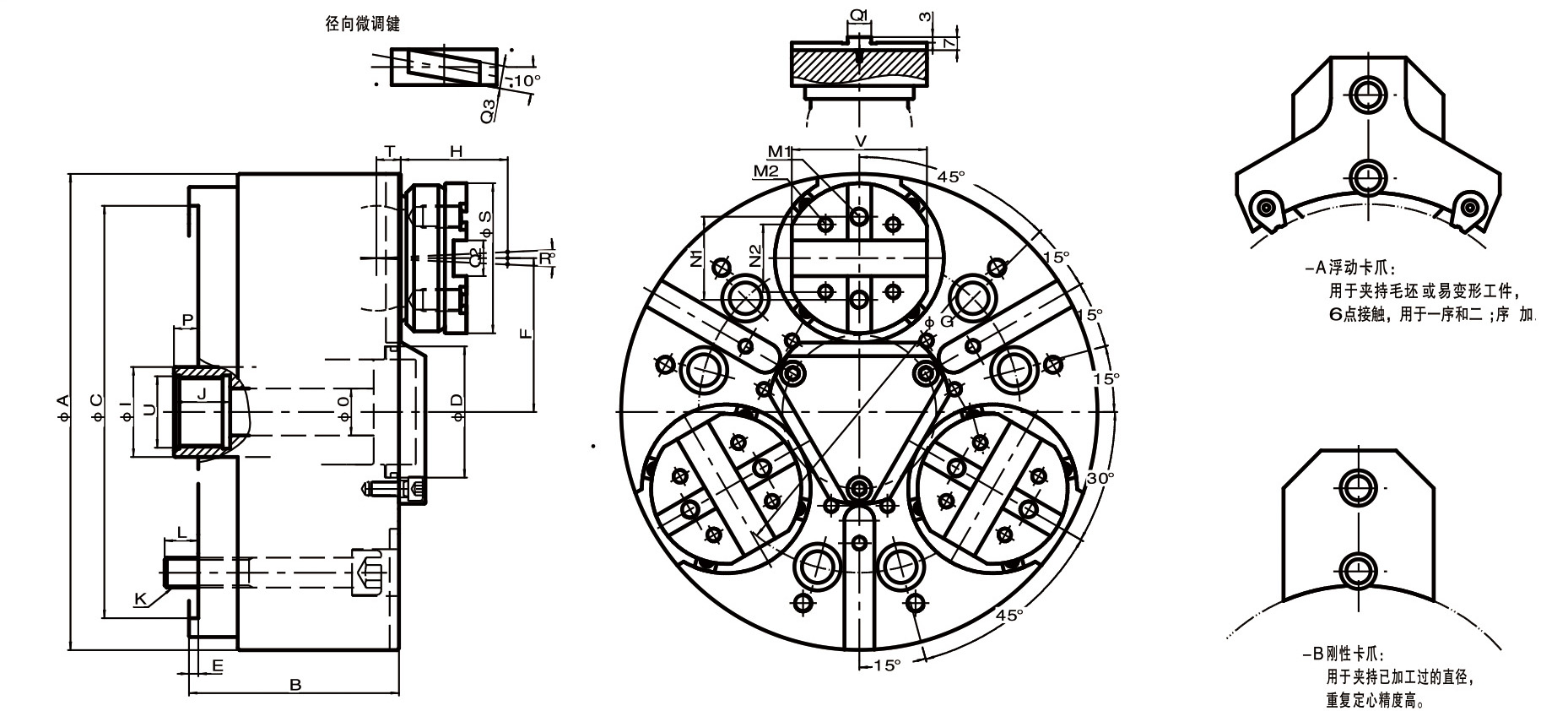

尺寸Dimensions 型號Type |
A(mm) |
B(mm) |
C(G7)(mm) |
D(H8)(mm) |
E(mm) |
F(mm) |
G(mm) |
H(mm) |
I(mm) |
J(mm) |
K(mm) |
|
SW-05
|
135
|
70
|
110
|
30.5
|
5
|
42
|
82.6
|
39
|
25
|
17
|
3-M10
|
|
SW-06
|
173
|
88
|
140
|
28
|
5
|
55
|
104.8
|
50
|
36
|
25
|
6-M10
|
|
SW-08
|
212
|
105
|
170
|
34
|
5
|
64
|
133.4
|
60
|
38
|
25
|
6-M12
|
|
SW-10
|
254
|
112
|
220
|
70
|
5
|
82
|
171.4
|
70
|
48
|
30
|
6-M16
|
|
SW-12
|
315
|
112
|
220
|
75
|
5
|
107
|
171.4
|
70
|
48
|
30
|
6-M16
|
|
SW-15
|
390
|
132
|
300
|
85
|
5
|
130
|
235
|
80
|
75
|
30
|
6-M20
|
|
SW-21
|
535
|
138
|
380
|
85
|
6
|
190
|
330.2
|
80
|
75
|
30
|
6-M24
|
|
SW-24
|
650
|
155
|
380
|
150
|
6
|
245
|
330.2
|
100
|
100
|
36
|
6-M26
|
|
尺寸Dimensions 型號Type |
L(mm) |
M1(mm) |
M2(mm) |
N1(mm) |
N2(mm) |
O(mm) |
P(mm) |
Q1(h8)(mm) |
Q2(h7) (mm) |
Q3(h7)(mm) |
R°(mm) |
|
SW-05
|
15
|
M6
|
M5
|
19
|
15
|
8.5
|
0~16
|
6.35
|
7.94
|
5
|
5
|
|
SW-06
|
16
|
M10
|
M8
|
32
|
24
|
12.5
|
7.5~28.5
|
7.94
|
12.68
|
9
|
5.2
|
|
SW-08
|
17
|
M12
|
M10
|
38
|
32
|
18
|
7.5~32.5
|
12.68
|
12.68
|
9
|
5.2
|
|
SW-10
|
18
|
M12
|
M10
|
44.4
|
36
|
25
|
0.5~25.5
|
12.68
|
19.03
|
12
|
5.4
|
|
SW-12
|
18
|
M12
|
M10
|
44.4
|
36
|
25
|
12.5~37.5
|
12.68
|
19.03
|
12
|
5.4
|
|
SW-15
|
26
|
M16
|
M12
|
63.5
|
48
|
52
|
10~40
|
12.68
|
19.03
|
12
|
4.7
|
|
SW-21
|
29
|
M16
|
M12
|
63.5
|
48
|
52
|
5~35
|
12.68
|
19.03
|
12
|
4.7
|
|
SW-24
|
29
|
M20
|
M16
|
63.5
|
54
|
72
|
4~36
|
12.68
|
19.03
|
12
|
5
|
|
尺寸Dimensions 型號Type |
S(mm) |
T(mm) |
U(mm) |
V(mm) |
|
SW-05
|
37
|
5
|
M20*1.5
|
36
|
|
SW-06
|
60
|
9
|
M28*1.5
|
55
|
|
SW-08
|
75
|
10
|
M32*1.5
|
65
|
|
SW-10
|
80
|
12
|
M38*1.5
|
72
|
|
SW-12
|
105
|
12
|
M60*1.5
|
100
|
|
SW-15
|
105
|
12
|
M60*1.5
|
100
|
|
SW-21
|
105
|
12
|
M60*1.5
|
100
|
|
SW-24
|
127
|
12
|
M80*2
|
116
|
|
尺寸Dimensions 型號Type |
卡爪的角行程 Jaw stroke R° |
斜嵌軸向行程Plunger Stroke(mm) |
最大推拉力 Max.Pull Force(KN) |
最大夾持力(H) Max.Gripping Force(Abstand H) (KN) |
最高回轉速Max.Speed(min﹣1) |
重量Weight(kg) |
|
SW-05
|
5°
|
16
|
12
|
29
|
600
|
4.5
|
|
SW-06
|
5.2°
|
21
|
18
|
44
|
4000
|
15
|
|
SW-08
|
5.2°
|
25
|
25
|
60
|
3500
|
27
|
|
SW-10
|
5.4°
|
25
|
40
|
96
|
2800
|
41
|
|
SW-12
|
5.4°
|
25
|
40
|
96
|
2500
|
66
|
|
SW-15
|
4.7°
|
30
|
50
|
120
|
1800
|
115
|
|
SW-21
|
4.7°
|
30
|
60
|
150
|
1500
|
196
|
|
SW-24
|
5°
|
32
|
100
|
180
|
1200
|
386
|
